LightningVault™ – Advanced Battery Power System

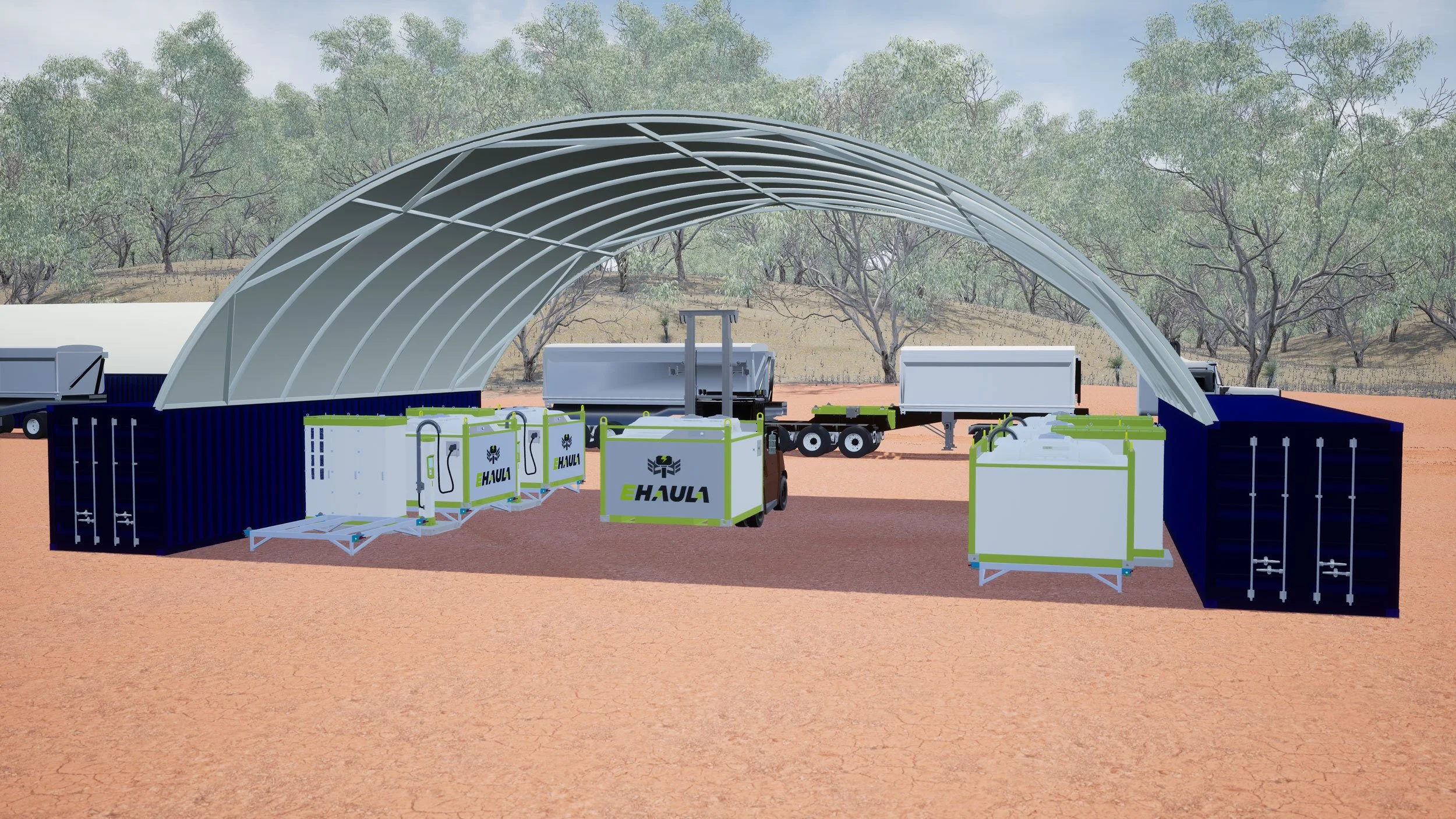

A temporary outdoor structure with a curved metallic roof, housing EHAULA's high-capacity battery platform, LightningVault™

Energy That Keeps Australia Moving

LightningVault™ is EHAULA’s high-capacity battery platform, purpose-built for heavy-haul transport across Australia’s toughest conditions.

Designed to withstand ambient temperatures up to 50 °C, LightningVault™ maintains an optimal internal climate for continuous, reliable power—on-highway, off-highway, and everywhere in between.

Each LightningVault™ module is engineered for durability, safety, and rapid exchange through EHAULA’s proprietary battery swap technology, enabling round-the-clock operation with zero downtime.

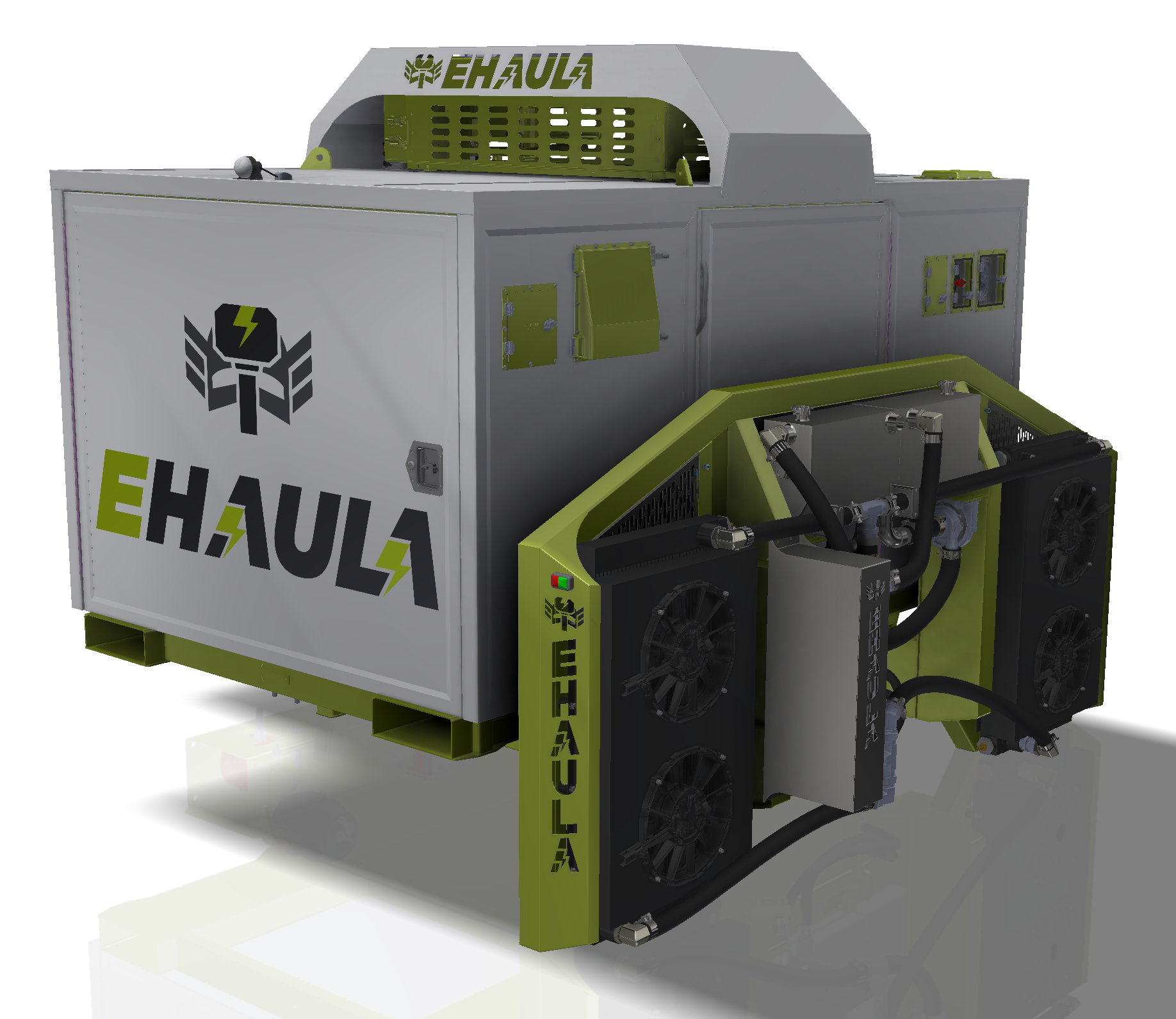

LightningVault™ and cooling

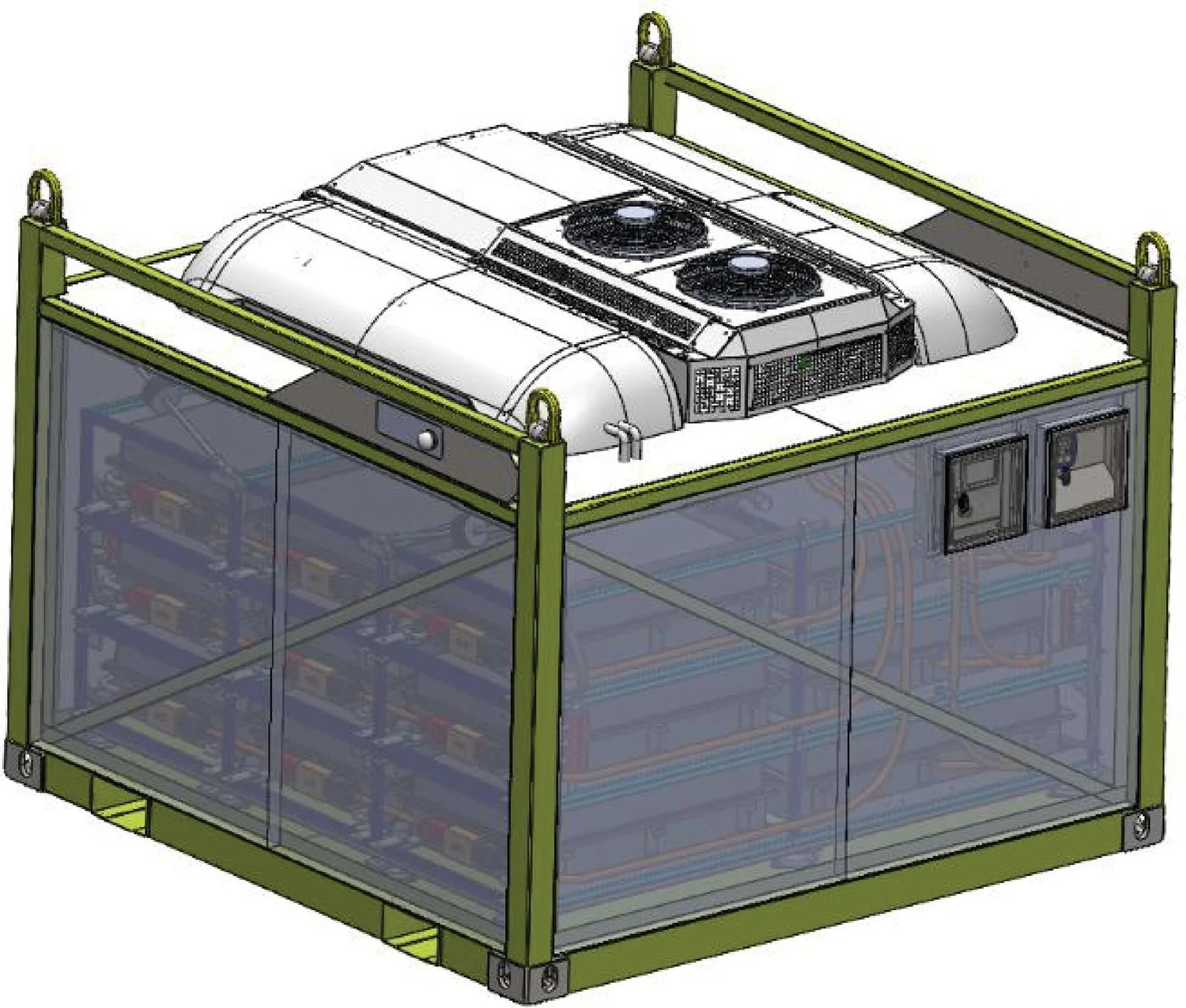

LightningVault™ EHAULA's high-capacity battery platform

Key Features & Inclusions

  • High-Energy LFP Chemistry

    ≥ 4,000 cycles at 80 % DoD for long-life, stable performance.

  • Dual Thermal Management System

    Integrated liquid cooling and air-conditioning maintain an internal temperature of ≈ 25 °C regardless of external heat or load demand.

  • Rapid Battery Swap Interface

    Automatic twist-lock and high-voltage connection/disconnection—safe, simple, and ready in minutes.

  • Vehicle-to-Grid (V2G) Enabled

    Can serve as a mobile energy storage or backup power device for depots and microgrids.

  • Heavy-Duty Protection & Handling

    Internal vibration isolation mounts and forklift/overhead lifting compatibility for safe handling and installation.

  • Regulatory Compliance

    Fully compliant with ADR 109 (UN ECE R100.3) safety standards.

Benefits

  • Maximum Uptime – swap in a charged pack in under 5 minutes; no waiting for megawatt charging.

  • Thermal Resilience – proven cooling system ensures consistent performance in 50 °C outback heat.

  • Energy Flexibility – scalable to route length, duty cycle, and GCM rating.

  • Lifecycle Value – designed for reuse as a stationary Battery Energy Storage System (BESS) at end-of-life.

  • Safety First – engineered with redundant monitoring and automatic isolation systems.

Example Performance Snapshot

LightningVault™ E352-LAC

  • 352 kWh
    (Other sizes on request to suit your fleet)

  • ≥ 4,000 @ 80 % DoD

  • 328 kW (Continuous) / 525 kW (Peak)

  • Up to 350 kW (<1 h 10%→ 80%)

    MSC (On Request)

  • LFP

  • Up to 50 °C Ambient

  • < 3,500 kg

  • Liquid + Air-Conditioned

  • EHAULA’s proprietary design for sub 5 mins connect/disconnect.

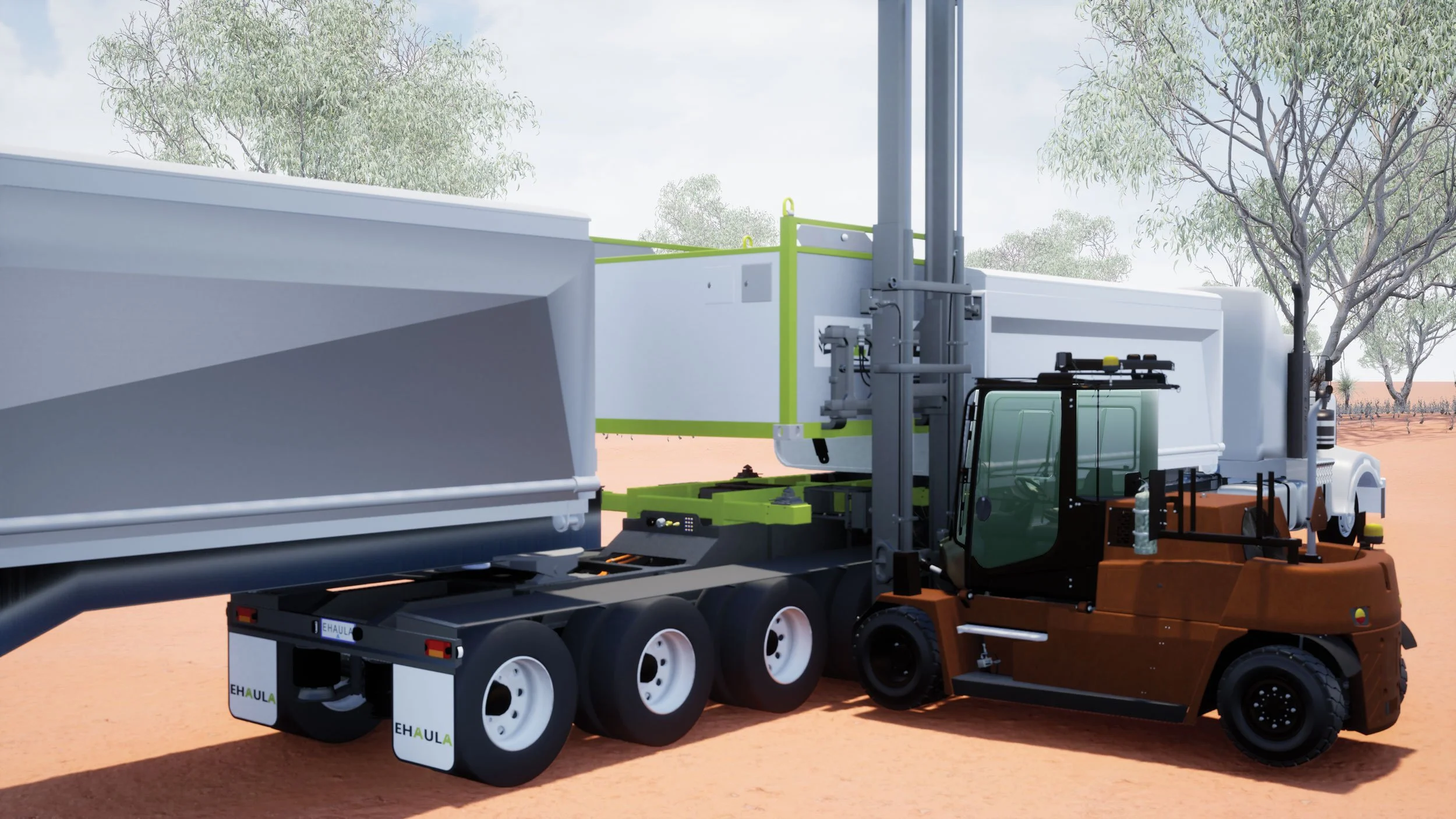

    Use of forklift or crane possible for swapping (Battery swap station on request)

  • Yes (on Request)

Get in Touch

Interested in how LightningVault™ can power your operation’s transition to electric freight?

Talk to our engineering team about configuration, energy planning, and integration with ThunderHaul™ systems.

Contact Us
